Specs

Pressure High
Dynamic Service Speed N/A
Seal Directionality Unidirectional, Bidirectional
Manufacturing Method Metal forming, Coating
Common Modifications Various profiles and metal laminate combinations
Catalog Standards N/A
Customizable Yes
Comparative Cost $$$
grid pattern left

Special Applications

Very high closure force. Single use. Ultra high pressure / vacuum. Cryogenic


More Information

Sizing standards
Metal seals are typically associated with extreme applications. Metal seal OEMs have developed their own standards and profiles. Profiles can range from E to C to O and include flat gasket shapes. Consult with Darcoid technical team to configure the optimal metal seal for your application.

Materials

Metal seals are made from elements and alloys matched to the application. They are often coated or laminated to facilitate optimal coining with mating surfaces. Contact us to understand what is possible for your application.

gfx grid bgstyle1
gfx grid bgstyle1m

Metal Seal & Metal O-ring FAQs

Metal seals are generally reserved for conditions where elastomers cannot meet the required performance, including extreme temperatures, cryogenic service, high pressure, high vacuum, aggressive environments, or very low leakage requirements. They can operate across unusually broad pressure and temperature envelopes but typically require substantially more closure force and tighter hardware control.

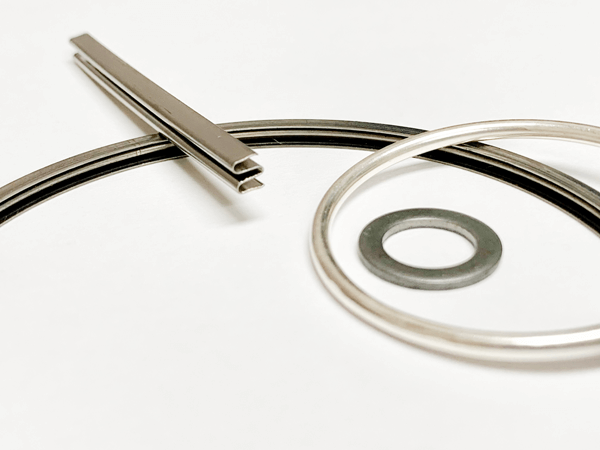

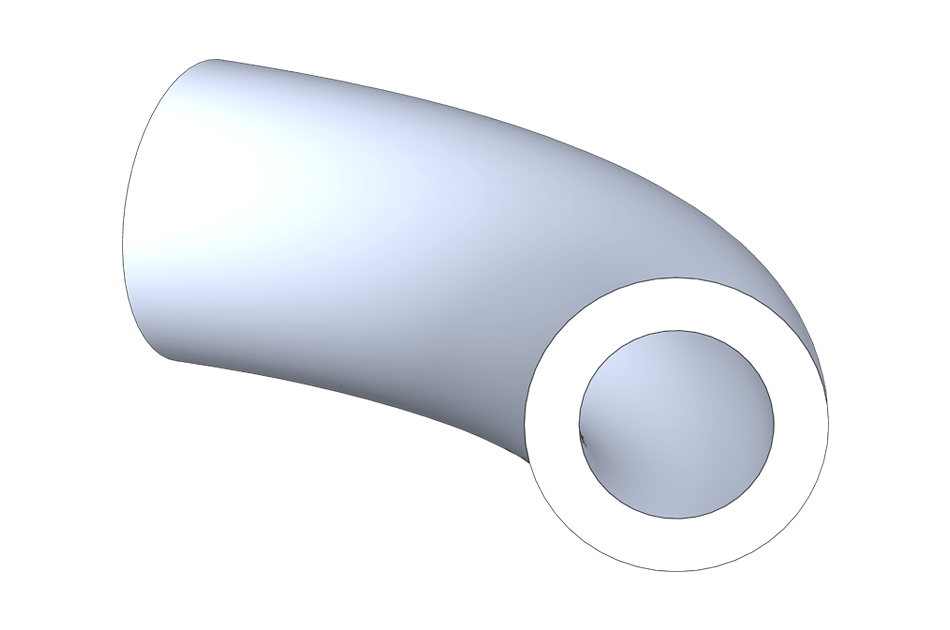

The profiles behave differently under load and pressure. Selection depends on factors such as whether pressure is internal or external, required springback, available seating load, groove geometry, leakage requirement, temperature, and pressure. Metal seal portfolio includes C-rings, spring-energized C-rings, E-rings, metal O-rings and other configurations because no single metal profile is optimal for every extreme application.

Metal seals should generally be treated as application-specific components rather than assumed to be reusable. Many designs rely on controlled deformation or “coining” against the mating surface to establish the seal. Darcoid's current metal-seal page identifies these seals as typically single-use, so replacement requirements should be established as part of the maintenance and service strategy.
