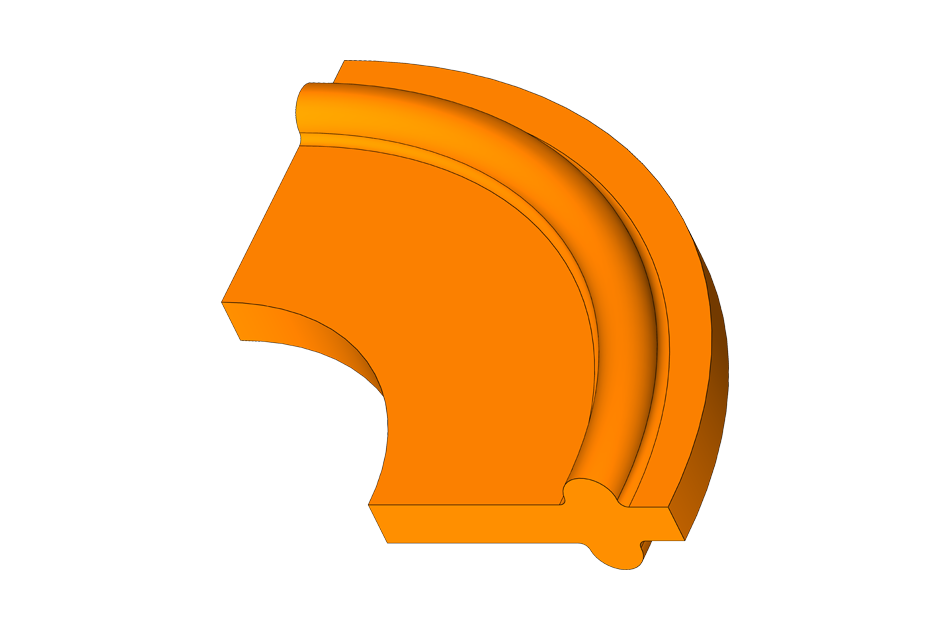

Sanitary Gaskets / Tri Clamp / HyClamp / Tri Clover

3-A Sanitary and Hygienic seals for aseptic pipe couplings used in food, dairy, beverage, pharmaceutical process lines, and chemical processing plants. Standard materials available include NBR Buna-N, EPDM, FKM and Silicone. Most decisions driving seal type selection are based on chemistry, temperature, exposure limits, USP, FDA qualifications, and curing methods. ASME-BPE Standard sizing. Industry names include Tri Clamp seals and Tri Clover seals. For premium FFKM and FKM materials, Darcoid recommends HyClamp Sanitary Gaskets from Precision Polymer Engineering.

Specs

Pressure [Low, Medium, High],

Dynamic Service Speed [N/a]

Seal Directionality [Bidirectional]

Manufacturing Method [Transfer, Compression, Injection molding],

Common modifications n/a

Catalog Standards ISO 2852, ASME BPE, BS 4825-3, DIN 32676-A,DIN 32676-B, DIN 32676-C

Customizable Yes

Comparative cost: $ / $$ / $$$

Special Applications

Compound formulations meeting food and pharma regs including FDA a-f, USP VI, 3A c.1, WRAS, ADI. Criticality: control of allowable gasket intrusion in process flow. Key is finding optimal balance between excess flow intrusion (pressure drop, turbulance, flow restriction) and negative intrusion (gap contaminant buildup).

More Information

Best in class

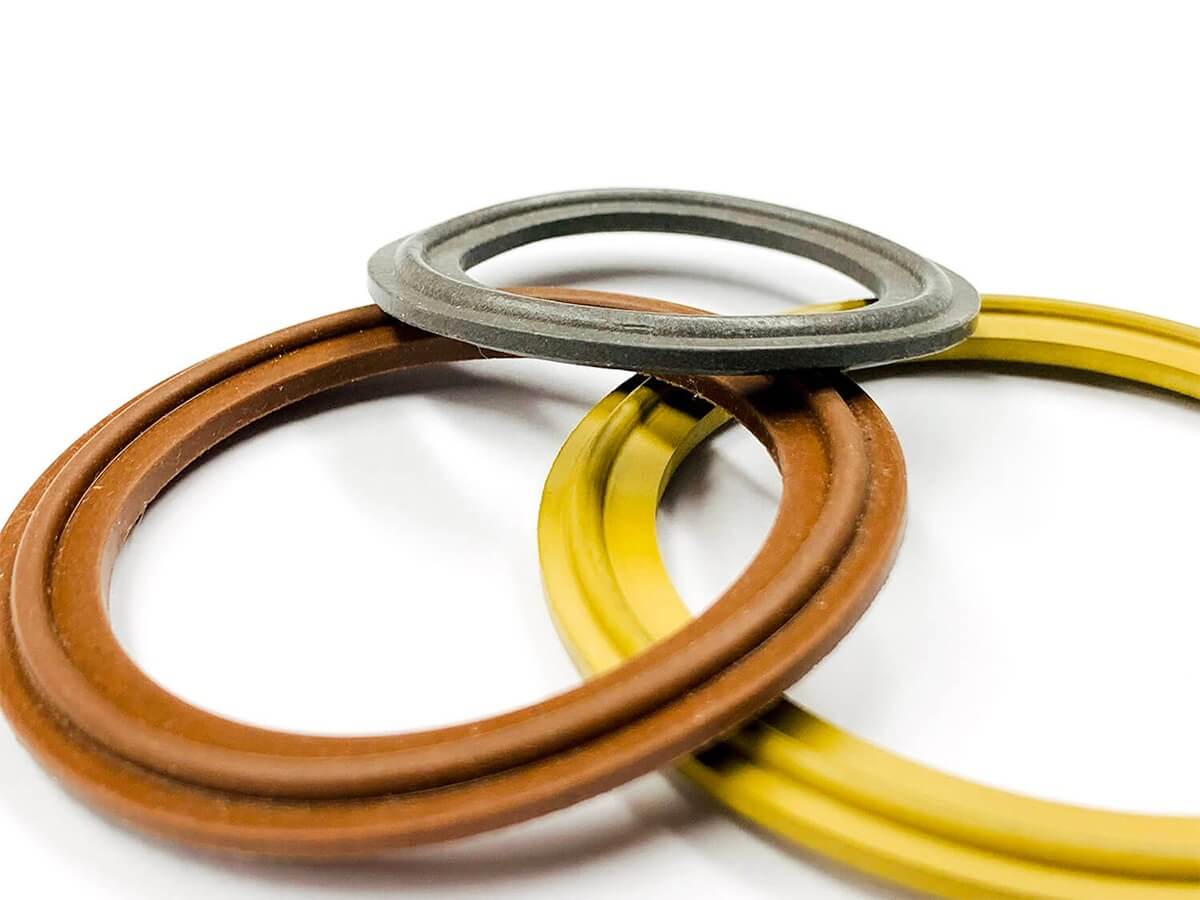

Premier materials leader Precision Polymer Engineering (PPE) has launched a range of Sanitary Gaskets with special emphasis on pharmaceutical manufacturing applications. PPE's "Tri-Clamp" sanitary gaskets have been developed to avoid many of the pitfalls in finding common seals to address the variety of gasket and sizing standards in the industry. Our technical team will show you the problems to look for and how to specify the optimal seal for your purity-critical fluid application.
