block pattern

Specs

Pressure Low, Medium
Dynamic Service Speed Low, Medium
Seal Directionality Unidirectional, Bidirectional
Manufacturing Method Lathe cut, Molding
Common Modifications Surface modifications and coatings
Catalog Standards N/A
Customizable Yes
Comparative Cost
grid pattern left

Special Applications

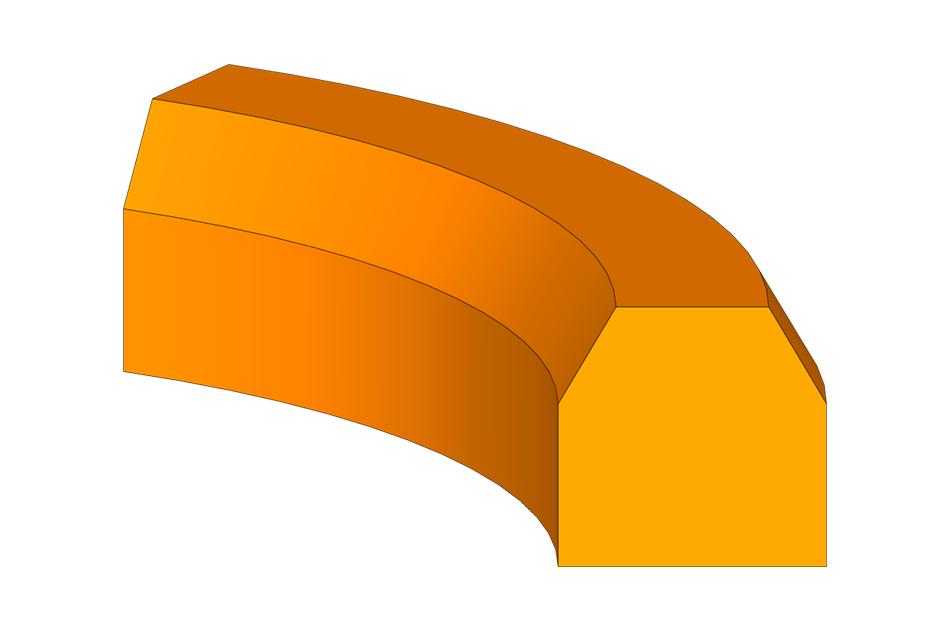

Wide variety of bevel shapes possible including undercuts via special mfg techniques.


More Information

Sizing - standards and custom

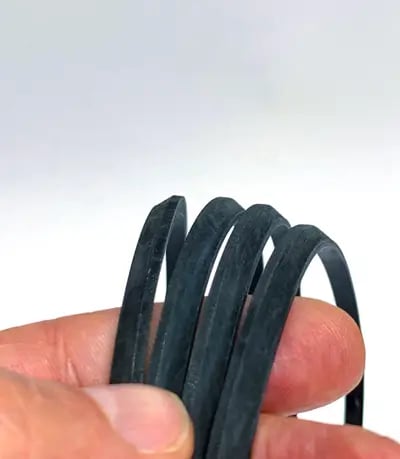

Typically made to order per application, but there are some standard profiles and dimensions available. Bevel or shape can be applied to OD or ID surface.
gfx grid bgstyle1
gfx grid bgstyle1m

Beveled Lathe Cut & D-Ring FAQs

A beveled lathe-cut seal is useful when a standard round or rectangular cross-section does not provide the desired contact geometry or fit. The bevel can be customized around the gland, direction of pressure, available space, and sealing surface.

Yes. Beveled profiles can be produced on either the ID or OD and can include custom angles, shapes, and undercuts. The appropriate profile depends on the hardware geometry and how the seal will be loaded.

Provide the gland or mating-component drawing, seal ID, cross-section dimensions, pressure direction, media, temperature, and whether the application is static or dynamic. A CAD model or existing seal sample is also helpful when replacing a current design.
