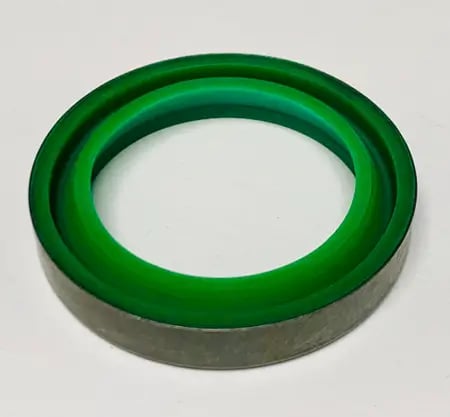

IMG_8203
Varies by OEM
$$
block pattern

Specs

Pressure [N/a]
Dynamic Service Speed [Low, Medium, High],
Seal Directionality [Unidirectional]
Manufacturing Method [Compression, Transfer],
Common modifications Garter spring, can exposed or fully overmolded, net molded or knife trimmed lip
Catalog Standards Varies by OEM
Customizable Yes
Comparative cost: $$
grid pattern left

Special Applications

Profile modifications to limit OD moisture ingress, wiper aggressiveness, interference fit


More Information

Sizing and Standards
Standard hydraulic rod inch and metric sizes with profile and gland dimensions varying by OEM. Consult with Darcoid technical team for the optimal selection for your specific application.

Engagement with Darcoid equals YOUR success
