Specs

Pressure High
Dynamic Service Speed High
Seal Directionality Bidirectional
Manufacturing Method Combination
Common Modifications Custom combinations energizer and cap materials
Catalog Standards Varies by OEM
Customizable Yes
Comparative Cost
grid pattern left

Special Application

Comparitively inexpensive intermediate technology for high P:V applications.  Temperature limited by elastomer properties.  Low running/breakout friction properties


gfx grid bgstyle1
gfx grid bgstyle1m

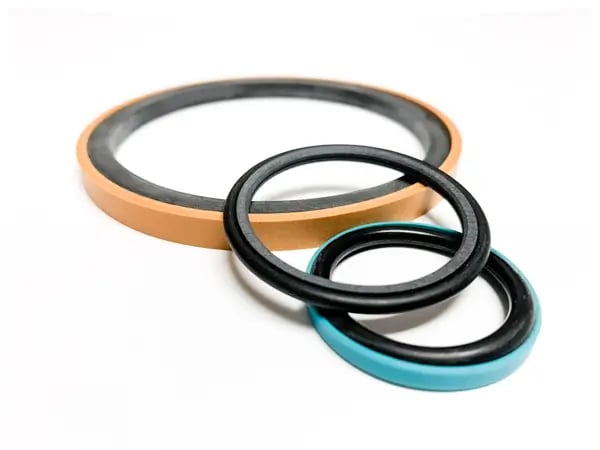

Cap Seal & Piston Seal FAQs

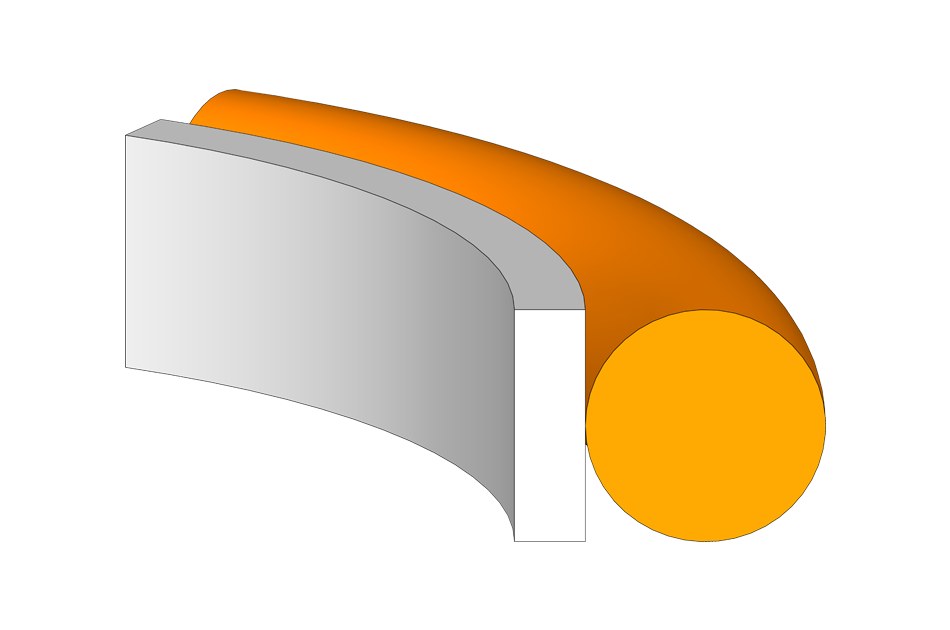

Cap seals are useful in dynamic applications where high pressure, speed, or low friction requirements make a conventional elastomer seal less desirable. A wear-resistant thermoplastic or PTFE cap provides the dynamic sealing surface while an elastomer energizer maintains sealing force.

The energizer provides the force that keeps the cap in contact with the sealing surface as pressure and hardware conditions change. Its material should be selected for the application's temperature, media, and compression requirements.

PTFE cap seals can provide low running and breakout friction, good wear performance, and high-pressure capability. Different PTFE compounds and energizer materials can be paired to balance friction, wear, temperature, chemical compatibility, and service life.
