Composite seal / multi port seal / plate seal

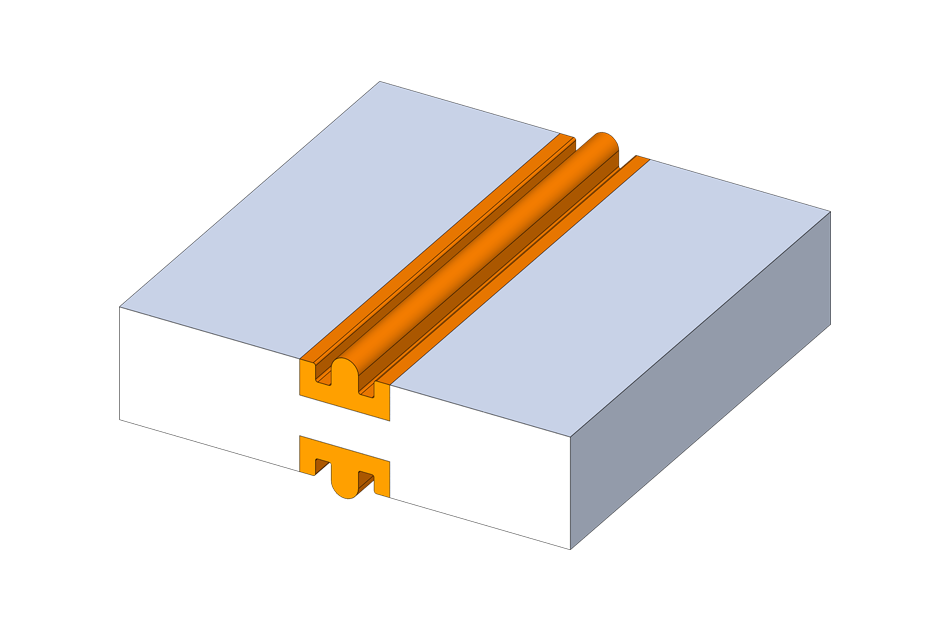

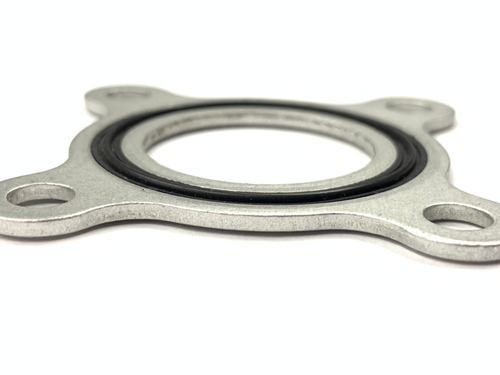

Elastomer sealing element bonded to (typically) metal substrate. Catalog gask-o-seals and thread seals for standard bolt sizes. Custom plate seals can be shaped to provide manifold sealing in a single, compression limiting, component. Use cases from aerospace thru semiconductor, and all points in between.

Specs

Pressure [Low, Medium, High],

Dynamic Service Speed [Low]

Seal Directionality [Bidirectional]

Manufacturing Method [Compression or transfer w chemical or mechanical bond to substrate]

Common modifications Metal or plastic retainer/plate material

Catalog Standards various for fastener seals

Customizable Yes

Comparative cost: $$$

Special Applications

Options range from single seal function thru multi manifold seal plate significantly reducing BOM count and reducing TAKT time. Compression limiter for optimal seal force retention / compression set resistance.
