Specs

Pressure Low, Medium
Dynamic Service Speed Low, Medium, High
Seal Directionality Bidirectional
Manufacturing Method Compression or transfer molding
Common Modifications Fabric reinforcement for high pressure/dynamics
Catalog Standards N/A
Customizable Yes
Comparative Cost
grid pattern left

Special Applications

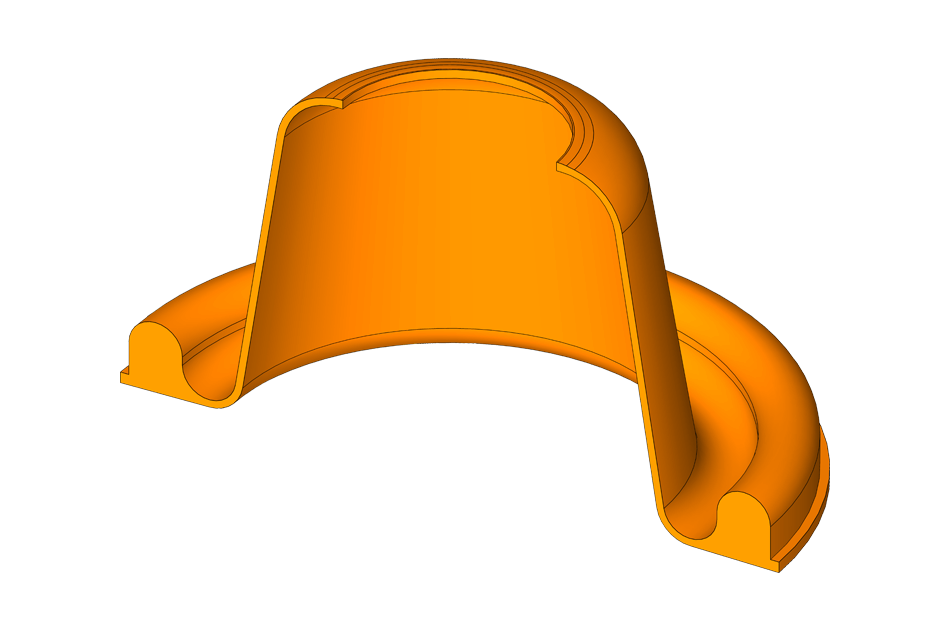

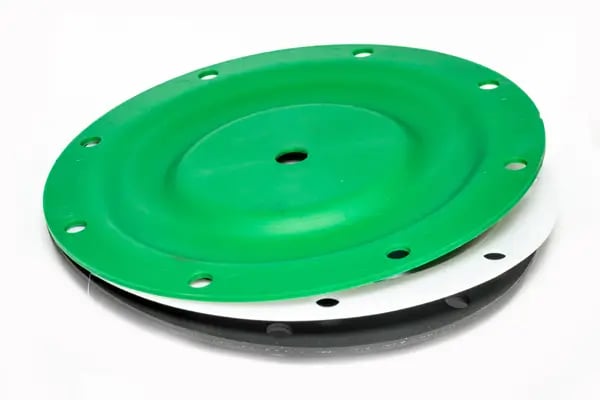

Flat surface or 3 dimensional, single or multiple seal legs for multi zone actuation.


gfx grid bgstyle1
gfx grid bgstyle1m

Diaphragm FAQs

Diaphragms are useful when pressure or mechanical movement needs to be transferred while maintaining a flexible barrier between areas of an assembly. Because the diaphragm flexes rather than sliding along a shaft, it can be well suited to pumps, regulators, valves, actuators, and similar cyclic applications.

Fabric reinforcement can be used when higher pressure, repeated cycling, or mechanical loading requires additional dimensional stability and strength. The reinforcement, elastomer, and diaphragm geometry must be designed together so the part can still flex through its required motion.

Provide the pressure differential, media, temperature, required stroke or deflection, cycle requirements, available geometry, and how the diaphragm will be retained. The design may be flat or three-dimensional and can incorporate multiple sealing or actuation features.
