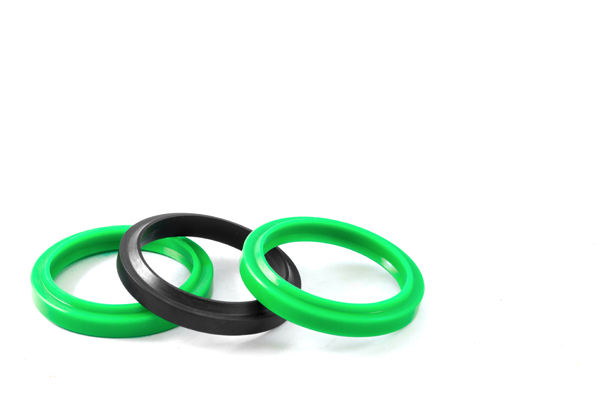

block pattern

Specs

Pressure Low, Medium
Dynamic Service Speed Medium, High
Seal Directionality Unidirectional, Bidirectional
Manufacturing Method Compression, Transfer, Injection
Common Modifications Single lip, Multi lip, Serration, Garter spring, Net molded or knife trimmed lip
Catalog Standards AS568-xxx, Parker 2-xxx, BS1806, JIS B 2401
Customizable Yes
Comparative Cost
grid pattern left

Special Application

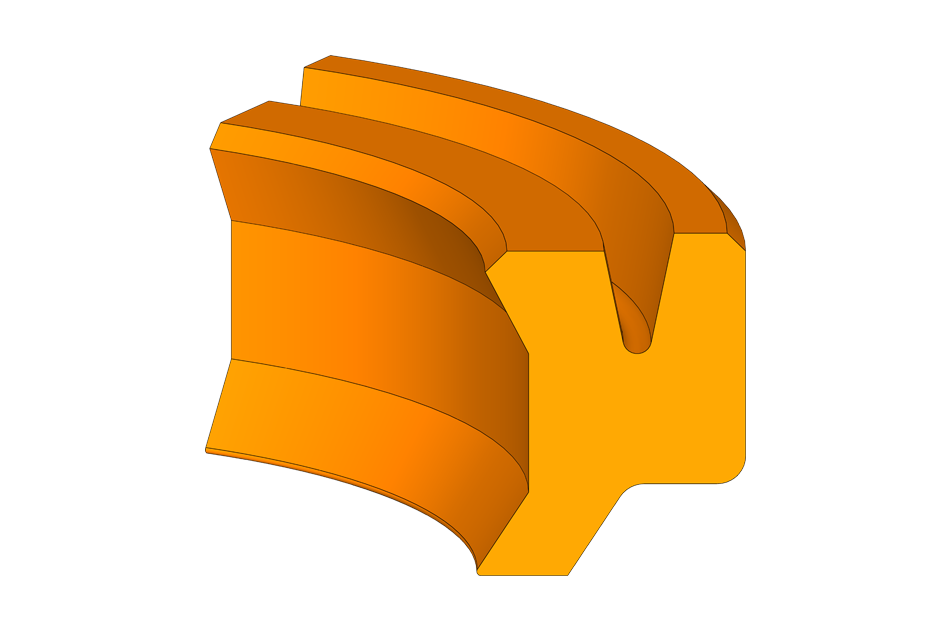

Not to be considered as a primary seal. Image shows lips optimized as fluid capture system for returning minor leakage back past the primary seal.


More Information

Sizing standards

Standard hydraulic rod inch and metric sizes with profile and gland dimensions varying by OEM. Consult with Darcoid technical team for the optimal selection for your specific application.

Available modifications

Heel slots, OD seal feature



gfx grid bgstyle1
gfx grid bgstyle1m

Wiper FAQs

A wiper is primarily designed to prevent dirt, dust, moisture, and other external contaminants from entering the cylinder. It should not normally be treated as the primary pressure seal; instead, it protects the rod-sealing system behind it.

A single-lip design primarily removes external contamination from the rod. A double-lip or more complex profile can also help manage residual fluid film or minor leakage while providing external contamination protection.

Provide the rod diameter, groove dimensions, speed, stroke, temperature, rod surface condition, and type of contamination expected. The primary rod seal and any fluid-return requirements should also be considered when selecting the wiper profile.
